Product descripiton:

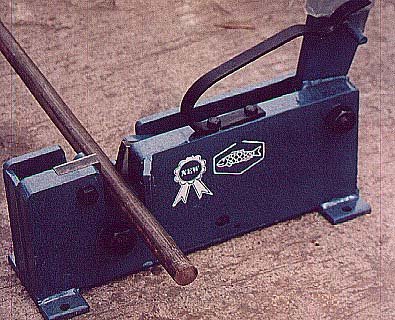

Handy steel bar cutting box are all purposes for cutting the steel
in the construction site. Low prices and quality products.

Three sizes available:MODEL NVC 50N/20, MODEL NVC 50N/26 , MODEL NVC 50N/30

PRODUCT FEATURES

  • LOW PRICES AND QUALITY PRODUCTS
  • EASY MOVABLE TO EVERYWHERE IN THE CONSTRUCTION SITE.
  • EASY INSTALLATION WITH EXCESS AND UNUSED MATERIAL CONSTRUCTION
  • USE A LITTLE FORCE OF THE WORKER FOR CUTTING WITH THE LONG EXTENSION BAR
  • THE BODY WELDED BOX-TYPE STURDY CONSTRUCTION FROM QUALITY STEEL PLATES.
  • THE CUTTERS ARE MADE FROM THE FINEST QUALITY MATERIAL  AND HARDENING WITH THE ELECTRIC FURNACE WHICH CAN ASSURE  THE MAXIMUN QUALITY.
  • EACH MODEL CAN ADJUST THE SUITABLE GEAR ACCORDING THE SIZE OF STEEL FOR FAST CUT.

Handy Steel Bar Cutting Box : MODEL NVC 50N/20

GEAR POSITION 1 2
ROUND BAR 18MM.

23/32 INCH.

 15MM

5/8 INCH
SQUARE BAR 16MM.

5/8 INCH

 15 MM.

5/8 INCH
FLATS BAR 35X8 MM.

1 3/8 X 5/16 INCH

35X6 MM.

1 3/8 X 1/4 INCH
SIZE OF THE BLADES LENGTH 35 MM. THICKNESS 10 MM
NET WEIGHT 13.5 KGS INCLUDED THE EXTENSION BAR 1 PC PER SET.
SUBJECT TO BE CHANGECD DESIGNATION  FOR IMPROVEMENTS WITHOUT NOTICE

Handy Steel Bar Cutting box : MODEL NVC 50N/26

GEAR POSITION 1 2 3
ROUND BAR 22MM.

7/8 INCH.

 20MM

25/32 INCH

 18MM.

23/32 INCH
SQUARE BAR 20MM.

25/32 INCH

 18 MM.

23/32 INCH

 16 MM.

5/8 INCH
FLATS BAR 40X12 MM.

1 19/32 X 1/2 INCH

40X10 MM.

1 19/32 X 3/8 INCH

 40X8MM.

1 19/32 X 9/32 INCH
SIZE OF THE BLADES LENGTH 45 MM. THICKNESS 15 MM
NET WEIGHT 25 KGS INCLUDED THE EXTENSION BAR 1 PC PER SET.
SUBJECT TO BE CHANGECD DESIGNATION  FOR IMPROVEMENTS WITHOUT NOTICE

Handy Steel Bar Cutting box : MODEL NVC 50N/30

GEAR POSITION 1 2 3
ROUND BAR 24MM.

1 INCH.

 22MM

7/8 INCH

 20MM.

25/32 INCH
SQUARE BAR 22MM.

7/8 INCH

 20 MM.

3/4 INCH

 18 MM.

23/32 INCH
FLATS BAR 50X10 MM.

2 X 3/8 INCH

50 X 8 MM.

2 X 5/16 INCH

 50X6MM.

2 X 1/4 INCH
SIZE OF THE BLADES LENGTH 50 MM. THICKNESS 15 MM
NET WEIGHT 34 KGS INCLUDED THE EXTENSION BAR 1 PC PER SET.
SUBJECT TO BE CHANGECD DESIGNATION  FOR IMPROVEMENTS WITHOUT NOTICE
